X-Knight Carbon Fiber 5'' Frame V2 Kit

X-Knight Carbon Fiber 5'' V2 Frame Kit is with the motor mounting hole 12×12 for M2, which can fit for the brushless motors like 1606/1805. It adopts T800 carbon material becomes ultimate durability while maintaining minimal weight. What's more, It is compatible with F4 AIO 35A toothpick FC and 1606, 1805 series 4-6S brushless motors.

We offer replacement of arm and M2 Clamping Nuts for your needs.

Bullet point

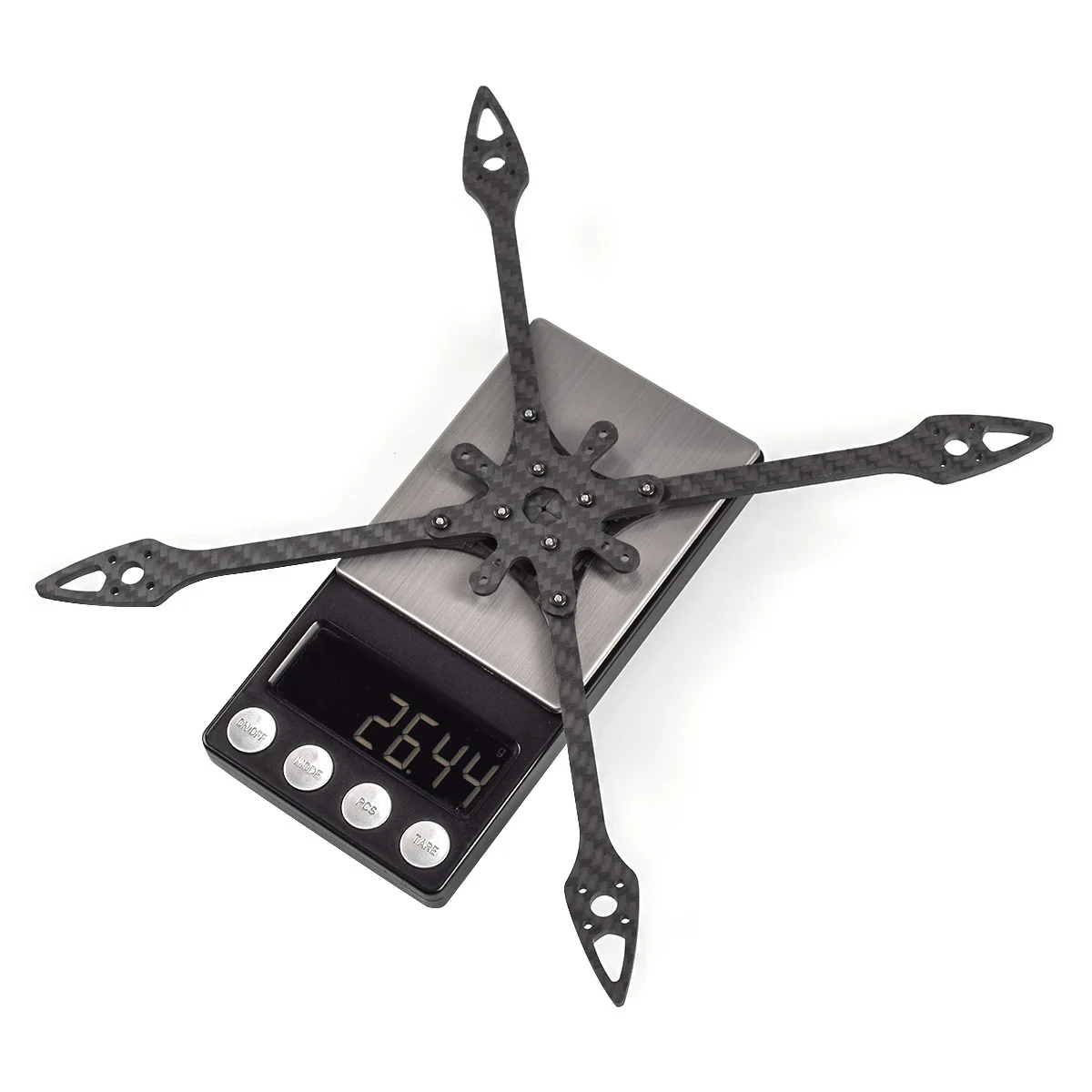

• X-Knight 5’’ V2 frame is a lightweight 5inch assembled toothpick carbon fiber frame kit, which is perfect for the X-knight 5inch quadcopter. Comes with titanium alloy screws, weights only 26.44g/pc.
• X-Knight 5inch V2 toothpick carbon fiber frame consists of 4 arms, top plate, and bottom plate. Product top plate with compression nuts for easy installation. Lightweight, super-stiff, but powerful and strong enough.
• It is compatible with F4 AIO 35A toothpick FC and 1606, 1805 series 4-6S brushless motors.
• X-Knight 5’’ V2 frame kit is made of T800 carbon fiber material with a 200mm wheelbase, the thickness of the solid removable arm is 3.5mm, guaranteeing the flight power of Quadcopter.
• Adopted the spraying process with an insulating effect on frame surface, effectively reducing the possibility of component damage caused by electric current.

Specification

• Material: T800 Carbon Fiber
• Wheelbase: 200mm
• Weight: 26.44g
• Frame height: 8mm
• Top plate thickness: 1.5mm
• Bottom plate thickness: 1.5mm
• Arm thickness: 3.5mm
• Battery protected plate thickness: 1.5mm
• Motor mounting hole:  12 x 12
• FC mounting hole: 26.5mm x 26.5mm

Recommended Parts

• Flight Controller: F4 35A AIO Brushless FC
• Compatible Propellers: Gemfan 5125 3-Blade props / HQ 5025 3-Blade Props
• Battery: 550mAh 6S 75C battery
• Motor: 1805 1550KV Brushless Motors / 1606 1550KV Brushless Motors

Package

• 1 * Top Plate
• 1 * Bottom Plate
• 4 * Arms
• 1 * Battery Protected Plate
• 8 * M2×8 Countersunk Screws
• 4 * M2×10 Screws
• 8 * M2 Nuts
• 8 * M2*1.85 Nuts
• 1 * Battery Strap
• 2 * Anti-slip Battery Mats
• 2 * 3mm Anti-impact Battery Mats
• 2 * 5mm Anti-impact Battery Mats

or

• 2* 5 inch Arm Replacement
