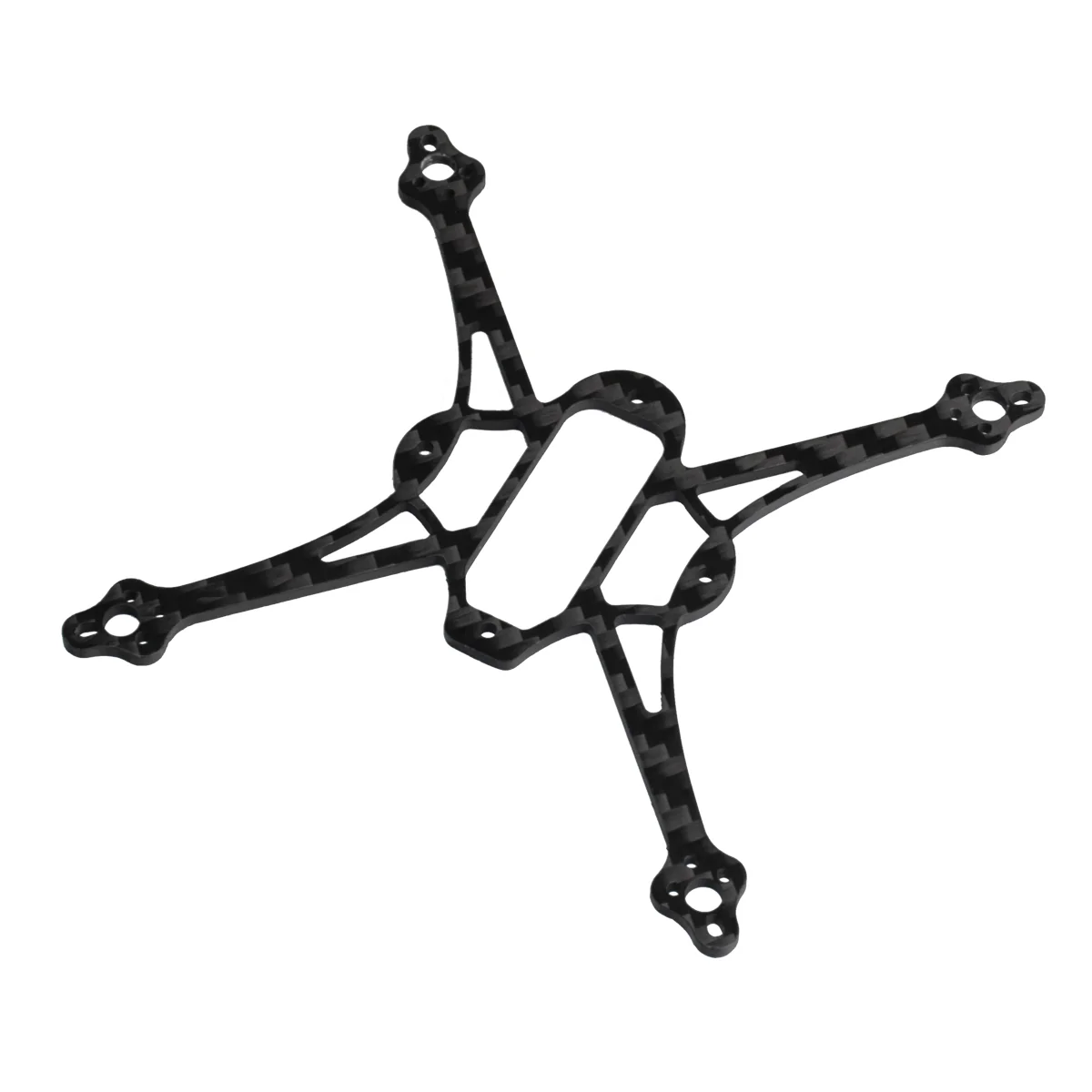

HX100 SE T300 Carbon Fiber Frame

This HX100 SE T300 Carbon Fiber Frame is customized for HX100 SE FPV Quad.

Bullet Point

• Made of T300 carbon fiber material, ultra-light body makes the drone fast and steady in flight.
• Suitable for BETAFPV F4 1S brushless flight controller V2.1 and 1102 13500KV motor. Make your 1S toothpick whoop drone.
• Only weighs 4.0g/pc with 2mm thickness, wheelbase is 100mm.
• The parcel comes with plastic durable package in default, which can protect the package from deformation during the shipping process.

Specification

• Material: T300 Carbon Fiber
• Diagonal motor distance: 100mm
• Motor mounting hole: for 1102 13500 motors (Compatible with 1103 motors)
• FC mounting hole: fully compatible with whoop style FC board mounting pattern, 26mm x 26mm

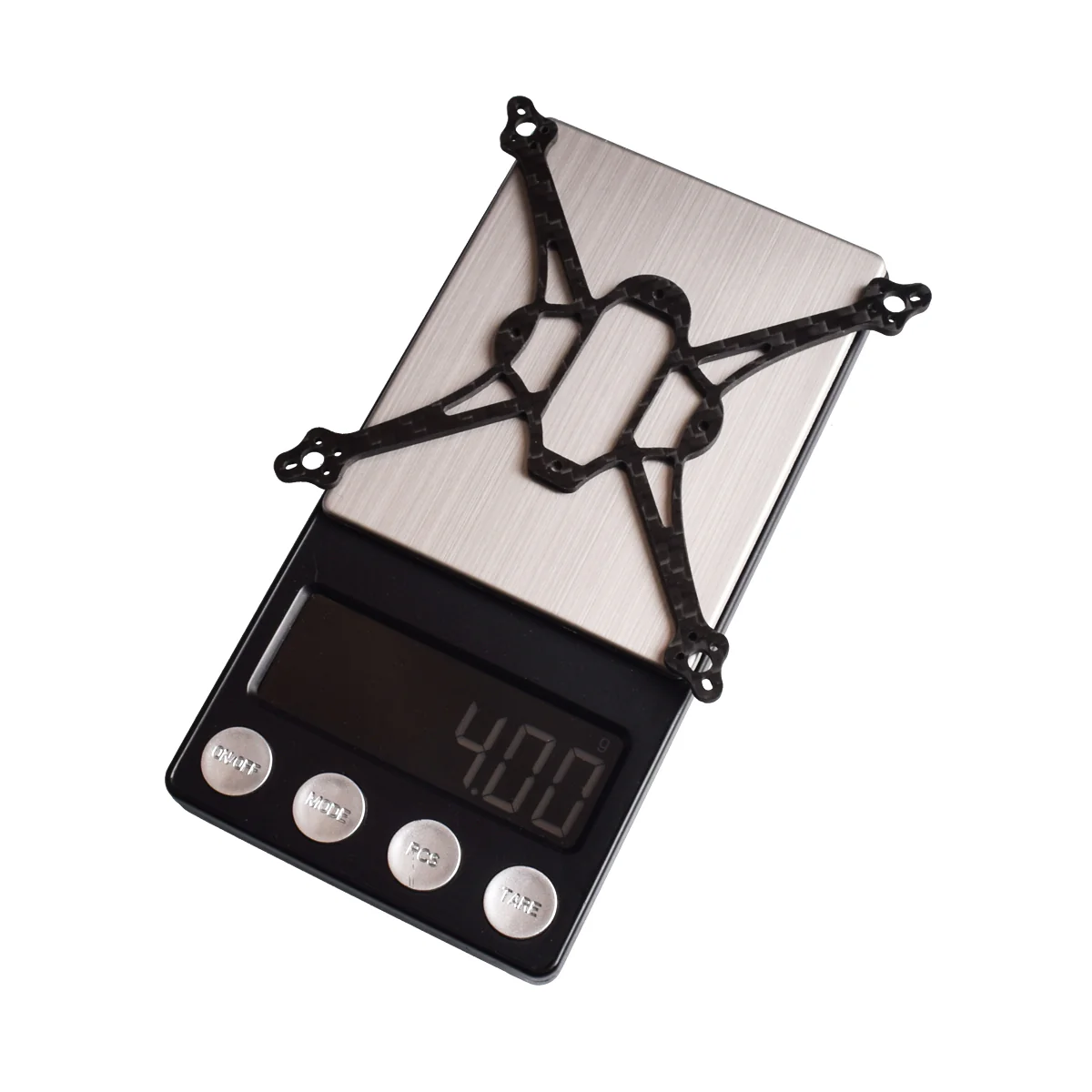

• Weight: 4.0g/pc

Recommended Parts

• Propellers: Gemfan 65mm 2-blade props(1.5mm shaft hole)

• Motors: 1102 13500KV Brushless Motors
• Batteries: BT2.0 300mAh 1S Battery
• FC & ESC: F4 1S Brushless FC
• Drone: HX100 SE FPV Quad

Package

• 1 * HX100 SE T300 Carbon Fiber Frame
• 1 * 85mm Battery Cable Tie
• 1 * No-Slip Rubber Pads
• 1 * Pack of Screws
