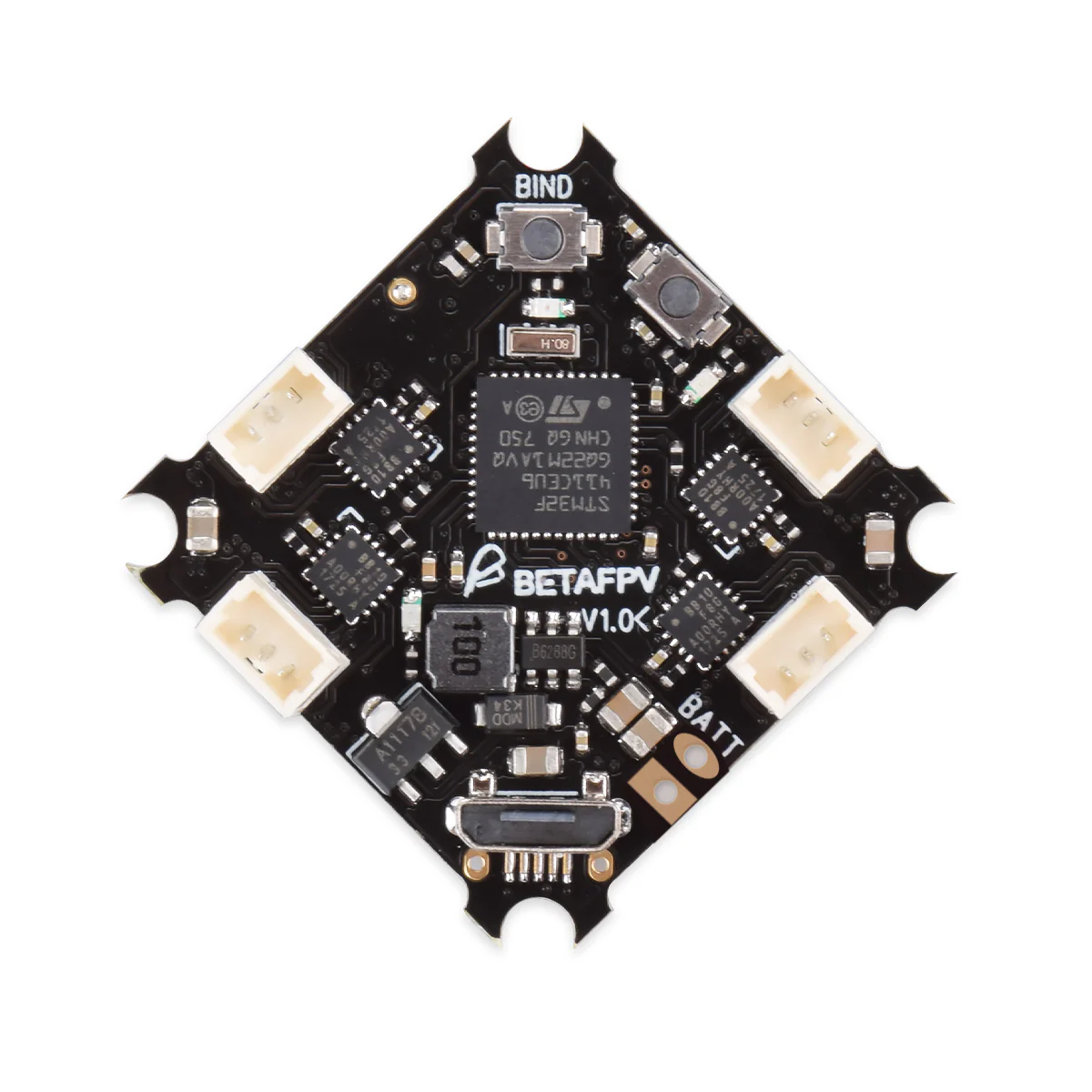

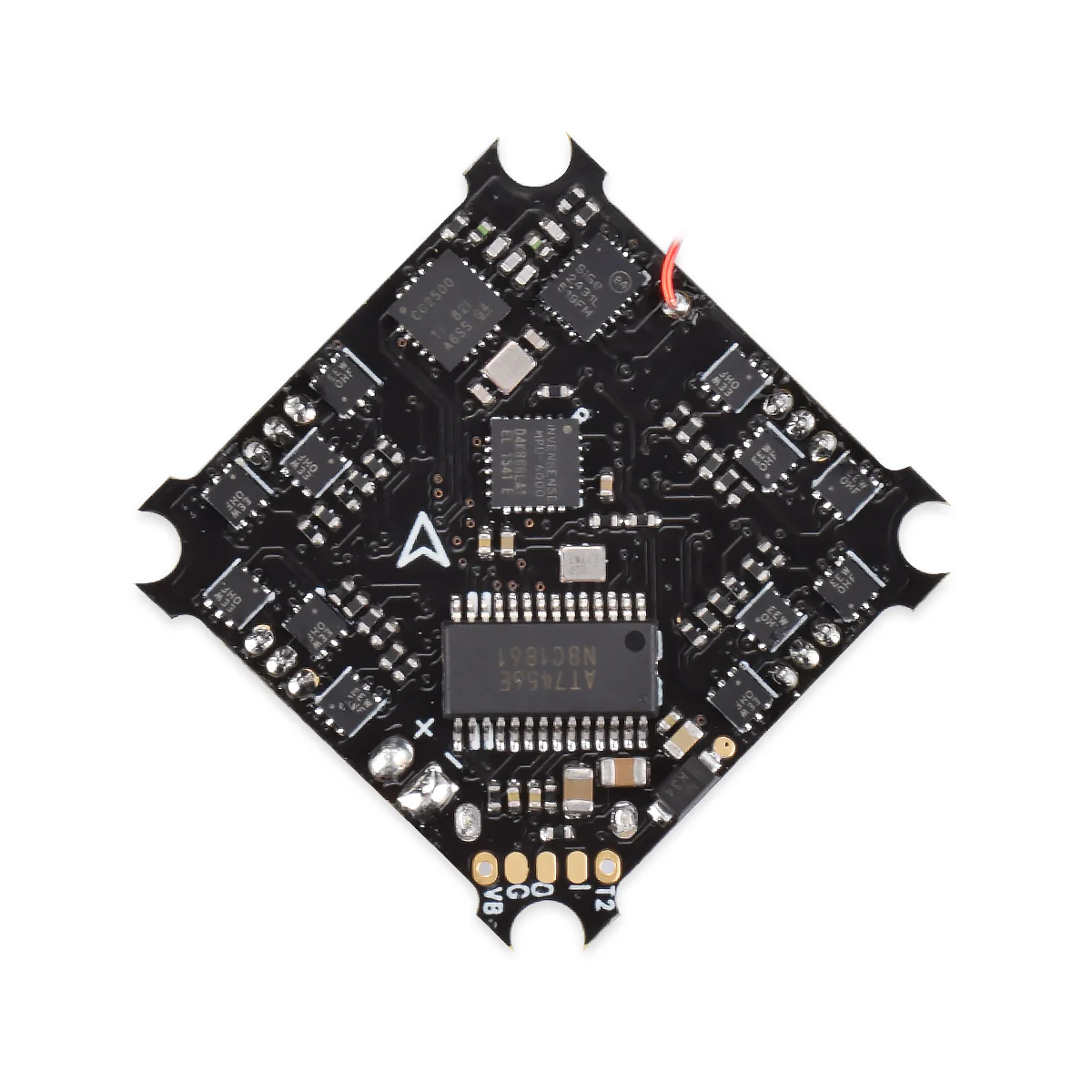

F4 1S Brushless Flight Controller ( Frsky RX )

The F4 1S brushless FC (Frsky RX) is on clearance sale. If you need No RX Version, please click here to reach out.

Ultra-compact with 3.3g weight(No include JST-PH power cable), this FC is ready and waiting to take residence within your 1S micro FPV aircraft of choice, which could save much weight for a faster fly experience.

• Weight Comparison between Betafpv F4 1S FC and Creazybee F3 FC

Comparison F3 Brushless FC & F4 Brushless FC

• Outlook Comparison

• Performance Comparison

SPECIFICATIONS OF FC

• CPU: STM32F411CEU6 ( 100MHZ )
• Six-Axis: MPU-6000 triaxial accelerometer / triaxial gyroscope (SPI connection)
• Size: 26mm x 26mm, fully compatible with the Inductrix quad frame, Beta65 Pro frame, Beta75 Pro frame, BWhoop B06 frame, and mounting pattern
• Firmware version: Betaflight MATEKF411RX 3.4.0 for F4 Brushless FC (SPI Frsky RX)
• OSD: Built-in BetaFlight OSD (STM32 controls OSD chip over SPI in DMA mode)
• Built-in SPI Frsky D8 protocol native receiver, compatible with almost ALL Frsky radios(e.g. Taranis X9D/X9D Plus/X7) or Frsky compatible transmitter module
• Power Cable: 55mm, with JST-PH 2.0 connector, AKA PowerWhoop connector
• Weight: 3.3g

DIAGRAM FOR F4 1S BRUSHLESS FC (Frsky RX+OSD)



SPECIFICATIONS OF ESC

• Power supply: 1S
• Current: 5A continuous and peak 6A (3 seconds)
• Support BLHeliSuite programmable
• Factory firmware: O_L_5_REV16_6.HEX
• Signal Support: D-shot150, D-shot300, D-shot600, Oneshot125, Multishot, PWM

RECOMMENDED PARTS LIST

• Frame:  Beta65 Pro frame / Beta75 Pro frame
• Props: 31mm 4-Blades props (for Beta65 Pro frame) / 40mm 4-blades props (for Beta75 Pro frame)
• Motors: 0703 motors
• Battery: 550mAh 1S batteries / 300mAh 1S Battery

PACKAGE

• 1 * F4 1S brushless flight controller
• 4 * M1.2x4mm screws
• 4 * M1.4x5mm screws
• 4 * Anti-vibration rubber dampers
