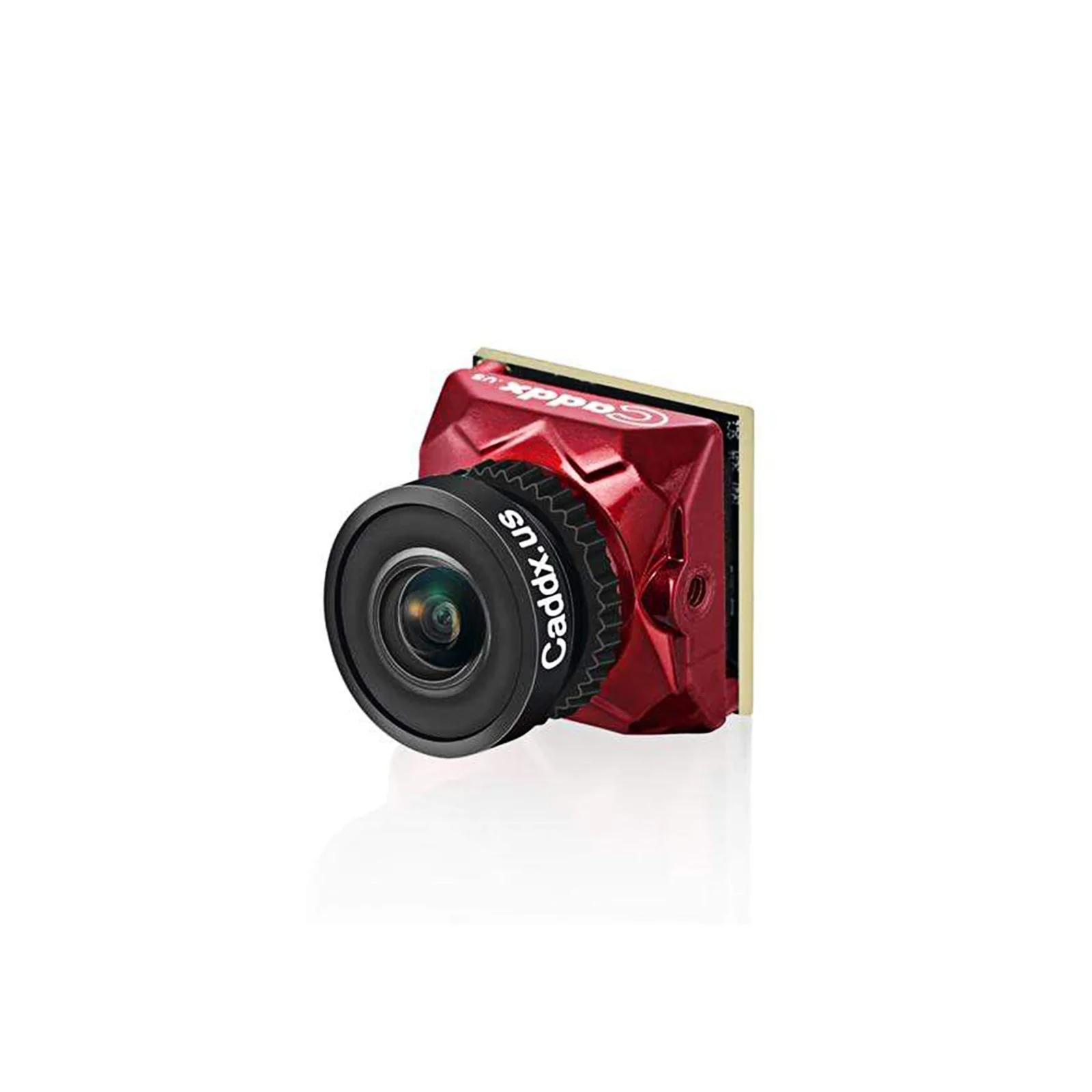

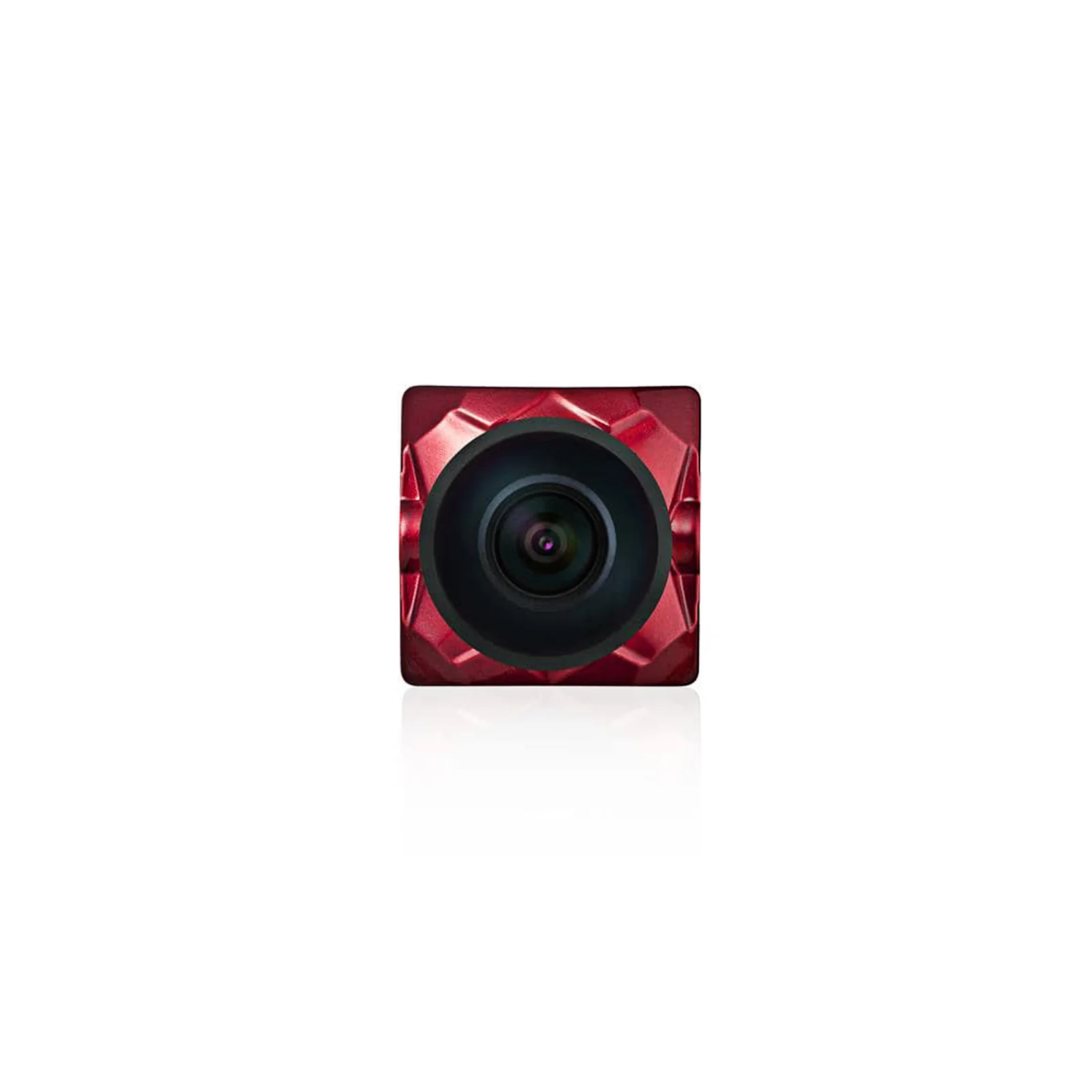

Caddx Ratel 19mm Micro Starlight 1200TVL HDR Low-Light FPV Camera
Caddx Ratel has a superb night vision effect, it can be seen clearly under the faint light. Equipped with high quality 1/1.18" Inch starlight HDR sensor, providing up to 0.0001 Sensitivity of lux. With the OSD menu, you can switch between PAL and NTSC video standards, or between 4:3 and 16:9 video formats. Ultra-low latency of 8ms
| CADDX RATEL FPV Camera | LENS |
| Night Vision | 2.1mm Lens |
| Remove JELLO | 2.1mm lens +ND8 |
| 160° Large angle | 1.66mm lens |
Super WDR
Caddx Ratel has super WDR, Ratel's images are brighter and sharper than those of regular cameras
Super night vision effect
Separate OSD
Specification
|
Model |
Caddx Ratel |
|
Image Sensor |
1/1.8" Inch starlight HDR sensor |
|
Horizontal Resolution |
1200TVL |
|
TV System |
NTSC & PAL (changeable) |
|
IMAGE |
16:9 & 4:3 (changeable) |
|
WDR |
Super WDR （HDR) |
|
Min. Illumination |
Starlight |
|
Lens |
1.66mm,2.1mm |
|
Synchronization |
Internal |
|
Electronic Shutter |
PAL: 1/50~100,000; NTSC: 1/60~100,000 |
|
S/N Ratio |
>60dB (AGC OFF) |
|
Video Output |
CVBS |
|
Camera OSD |
Separate OSD |
|
DNR |
3-DNR |
|
LANGUAGE |
ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN |
|
Day/Night |
Auto/Color/B&W/EXT |
|
Dimensions |
19mm*19mm*19mm |
|
Wide Power Input |
DC 5-40V |
|
Work Temperature |
-20℃~+60℃ |
|
Work Humidity |
20%~80% |
|
Weight |
8g (N.W.)/ 40.5g (G.W.) |
Packing List：
- 1 * Caddx Ratel camera
- 1 * 5D-OSD menu board
- 1 * 4pin FPV silicone cable A x1 (extend into a 2pin joint for OSD board and a 3pin joint for FPV)
- 1 * FPV silicone cable B
- 1 * Internal hexagonal wrench x1
Original: $21.99
-65%$21.99
$7.70More Images
Caddx Ratel 19mm Micro Starlight 1200TVL HDR Low-Light FPV Camera
Caddx Ratel has a superb night vision effect, it can be seen clearly under the faint light. Equipped with high quality 1/1.18" Inch starlight HDR sensor, providing up to 0.0001 Sensitivity of lux. With the OSD menu, you can switch between PAL and NTSC video standards, or between 4:3 and 16:9 video formats. Ultra-low latency of 8ms
| CADDX RATEL FPV Camera | LENS |
| Night Vision | 2.1mm Lens |
| Remove JELLO | 2.1mm lens +ND8 |
| 160° Large angle | 1.66mm lens |
Super WDR
Caddx Ratel has super WDR, Ratel's images are brighter and sharper than those of regular cameras
Super night vision effect
Separate OSDSpecification
|
Model |
Caddx Ratel |
|
Image Sensor |
1/1.8" Inch starlight HDR sensor |
|
Horizontal Resolution |
1200TVL |
|
TV System |
NTSC & PAL (changeable) |
|
IMAGE |
16:9 & 4:3 (changeable) |
|
WDR |
Super WDR （HDR) |
|
Min. Illumination |
Starlight |
|
Lens |
1.66mm,2.1mm |
|
Synchronization |
Internal |
|
Electronic Shutter |
PAL: 1/50~100,000; NTSC: 1/60~100,000 |
|
S/N Ratio |
>60dB (AGC OFF) |
|
Video Output |
CVBS |
|
Camera OSD |
Separate OSD |
|
DNR |
3-DNR |
|
LANGUAGE |
ENG/FRANCE/RUS/SPA/PU/KOREA/CHN/JAPAN |
|
Day/Night |
Auto/Color/B&W/EXT |
|
Dimensions |
19mm*19mm*19mm |
|
Wide Power Input |
DC 5-40V |
|
Work Temperature |
-20℃~+60℃ |
|
Work Humidity |
20%~80% |
|
Weight |
8g (N.W.)/ 40.5g (G.W.) |
Packing List：
- 1 * Caddx Ratel camera
- 1 * 5D-OSD menu board
- 1 * 4pin FPV silicone cable A x1 (extend into a 2pin joint for OSD board and a 3pin joint for FPV)
- 1 * FPV silicone cable B
- 1 * Internal hexagonal wrench x1
