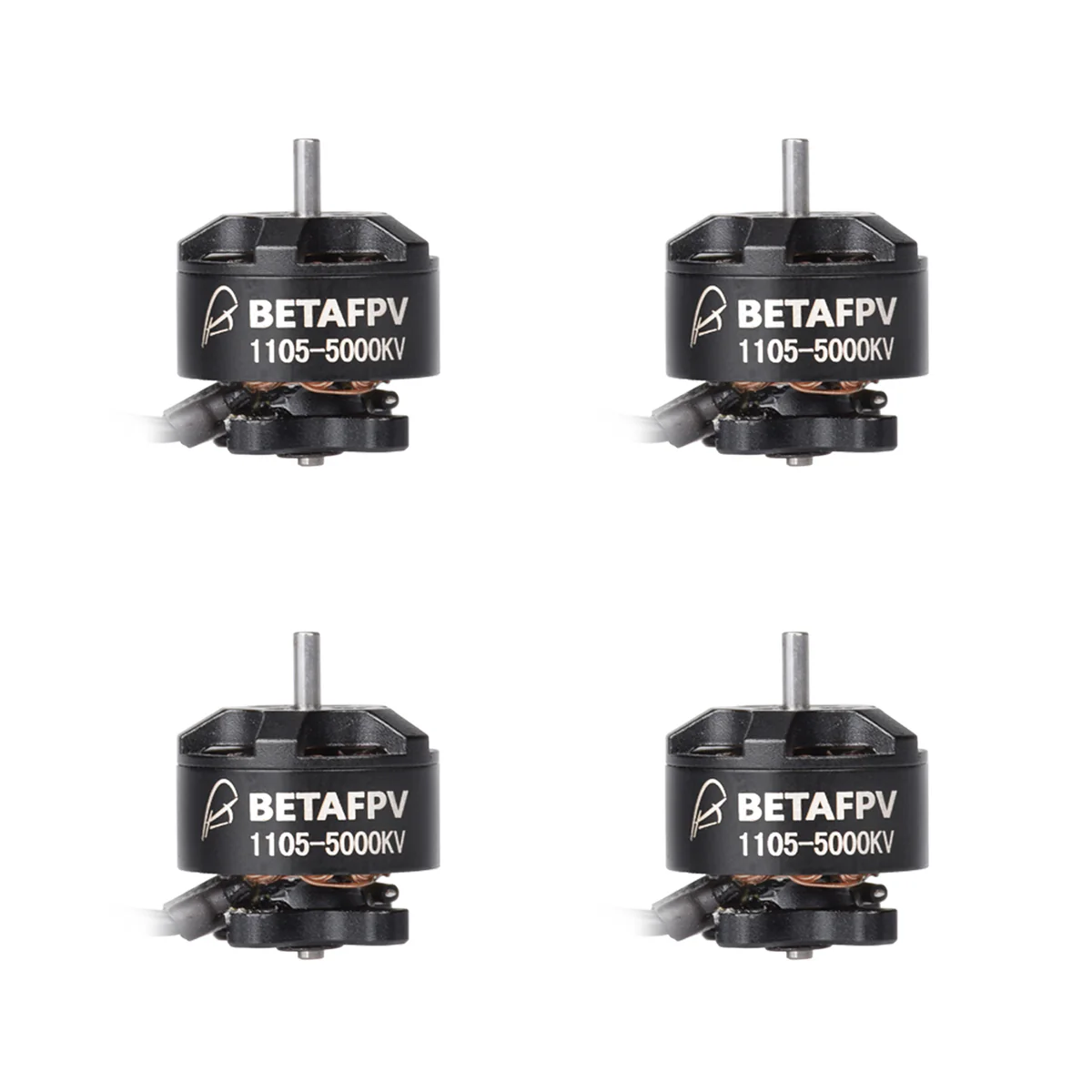

1105 Brushless Motors

Powerful, fast and durable Brushless 1105 motors come in two KV options: 5000KV for 4S whoop and 6000KV for 3S whoop.

BULLET POINTS

• 1105 brushless motors are customized for Beta85X.
• 6000KV for original Beta85X(HD), support 3S power.
• 5000KV for new Beta85X(HD), which could support 4S power.
• Fits with 2"-3" propellers
• Shaft Diameter: 1.5mm
• Weight: about 20g (4 pcs)

1105 Motors	Recommend Battery	Cables
6000KV	3S	30AWG
5000KV	4S	28AWG

Note: DO NOT recommend the 6000KV 1105 motors for 4S power. If you try this combo, the motors will overheat and burn (maybe the ESC). As a result, it will cause permanently damage on the motor or ESC.

RECOMMENDED PARTS

• Propellers: EMAX Avan 2" Props / 3020 2-Blade Props / 3030 3-Blade Props
• Frame: Beta85X frame
• FC: F4 2S Brushless FC
• ESC: BLHeli_32 16A

SPECIFICATION

• Height: 14mm
• Weight: about 5.2g (1 pc)
• Shaft: φ1.5mm
• Motor Mount Holes: M2.0 on Dia 9.0mm
• KV (rpm/V): 6000 / 5000
• Plug and cables:
• Micro JST-1.25 3-pin connector with 30AWG cables (6000KV)
• Micro JST-1.25 3-pin connector with 28AWG cables (5000KV)

PACKAGE

• 4 * BETAFPV 1105 Brushless Motors
